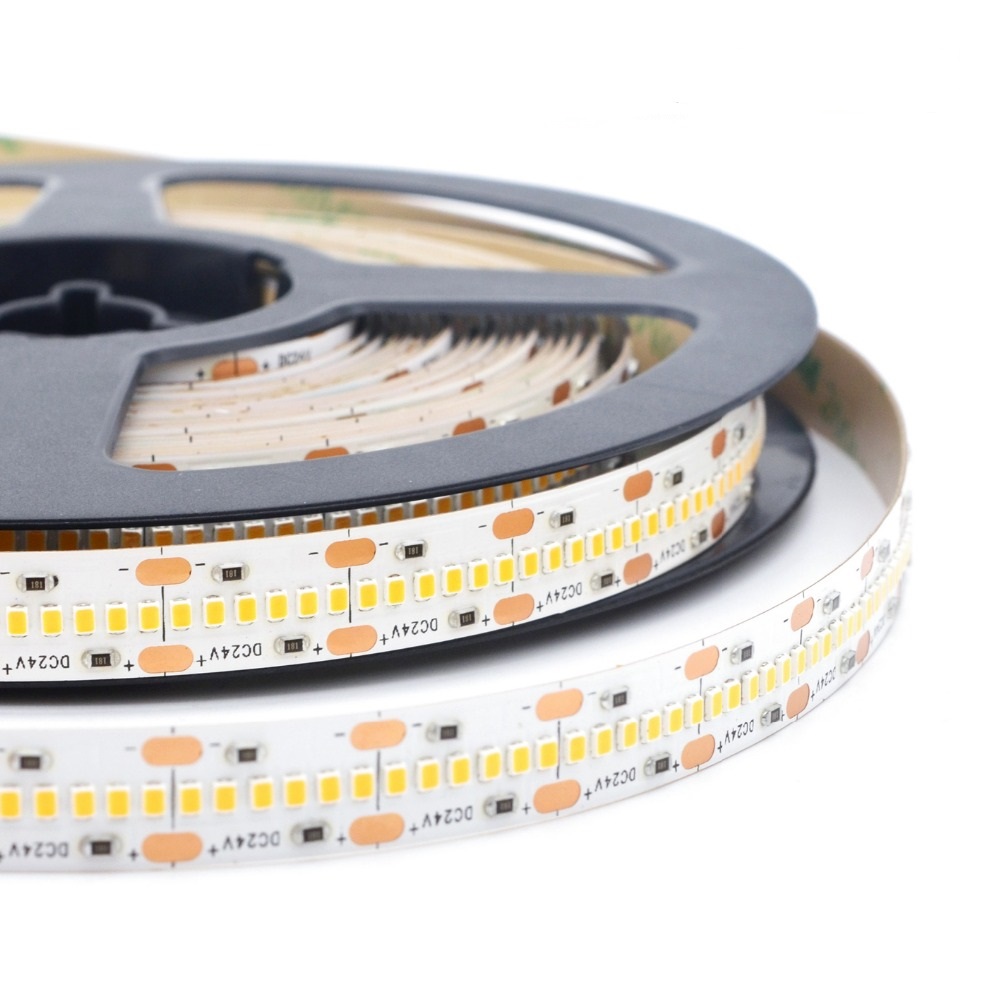

420 pcs SMD2216/meter led strip light offers high efficiency, high CRI choices, and compact size for denser placement for even, smooth and hotspot free lighting. SMD2216 LED ribbon light is the best and cost-effective high CRI led linear lighting solution.
Physical Dimensions & Specifications
| NON-WATERPROOF | WATER RESISTANT | WATERPROOF | |
| Part # | LDT-FV2230C24420-IP20 | LDT-FV2230C24420-IP65 | LDT-FV2230C24420-IP 68 |
| Dimensions | 3/8″ (10mm) wide 1/16″ (2mm) thick 16.4′ (5M) long |
3/8″ (10mm) wide 1/8″ (3mm) thick 16.4′ (5M) long |
1/2″ (12.7mm) wide 3/16″ (4mm) thick 16.4′ (5M) long |
| Cut Length | 24VDC: 0.79″ (20mm) | 24VDC: 0.79″ (20mm) | 24VDC: 0.79″ (20mm) |
| IP Rating | IP20 Indoor Use Dry Location |
IP65 Splash Resistant | IP68 Submersible |
| Adhesive Backing | Yes / 3M Adhesive | Yes / 3M Adhesive | No |
| Mounting Method | Adhesive Backing | Adhesive Backing | Mounting Straps or Adhesive Caulk |
| Input Voltage | 24VDC | 24VDC | 24VDC |
| Beam Angle | 120 Degrees | 120 Degrees | 120 Degrees |
| Dimmable | Yes | Yes | Yes |
| Max Power Consumption | 7.27Watts per foot (24 Watts per meter) |
7.27Watts per foot (24 Watts per meter) |
7.27Watts per foot (24 Watts per meter) |
| LED Type | SMD 2216 LED Chips | SMD 2216 LED Chips | SMD 2216 LED Chips |
| LED Color | 2700K
3000K 4000K 6000K |
2700K
3000K 4000K 6000K |
2700K
3000K 4000K 6000K |
| LED Quantity | 126 LEDs per foot (2100 per reel) |
126 LEDs per foot (2100 per reel) |
126 LEDs per foot (2100 per reel) |
| Max Run | 16.4 feet @ 24VDC | 16.4 feet @ 24VDC | 16.4 feet @ 24VDC |
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Warranty | 3Year | 3 Year | 3 Year |
| Suitable Uses | Dry Location Only | Dry or Damp Locations | Dry, Damp or Wet Locations Safe for use in pools, ponds, fountains and water features. |
Features:
- Maintenance free
- Solid-state construction makes for high shock and vibration resistance
- SMD 2216 LEDs are super bright, high CRI and low power consumption
- Extremely long life: up to 50,000 hours with very low time-luminosity decay
- No RF interference
- Custom flexible PCB board color are available in white, black or yellow (special order)
Applications:
- Architectural lighting for canopies, corridors, archways, windows
- Downlighting or uplighting for wall wash applications
- Backlighting or edge lighting for signage
- Edge-lighting for glass
- Under-cabinet, toe-kick, in-cove moldings
- DIY projects
- Safety stair tread and step marking
- Decorative lighting for holidays, tradeshows, exhibitions
