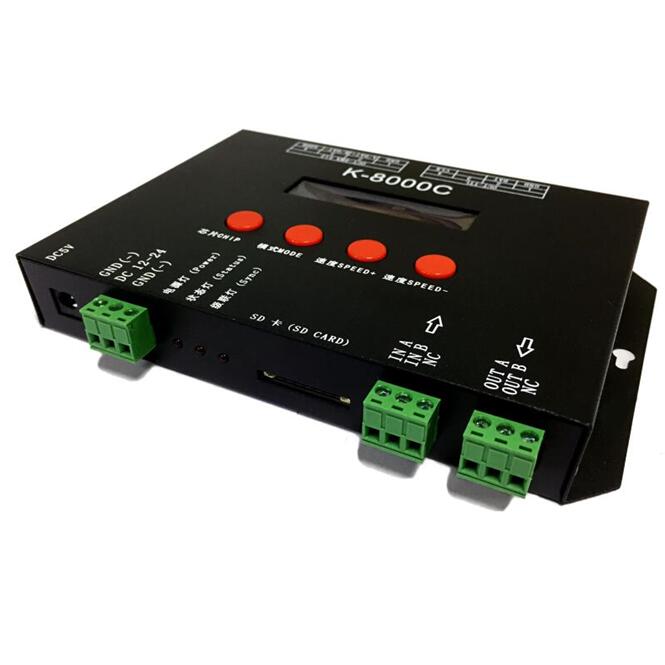

K-8000C is an offline controller, the updated version of T-8000S. It’s compatible with the majority of SPI & DMX IC chips existing in the market. Up to 32GB SD cards are supported.
Features
1.32 to 65536 grey levels control, Gamma correction procession;
2.Used for dome, linear or any other led lights containing the majority of SPI & DMX IC chips existing in the market;
3.It contains EIGHT output ports, and each one supports up to 1024 pixels or 512 pixels in the case of DMX;
4.Programs are stored in the SD card, which stores up to 32 programs and supports up to 32GB.
5.It not only stands alone, but also interconnects using up to 150 meters high quality copper wire cord;
6.The IC type is set not only in the software LedEdit-K, but also by pressing red round button CHIP;
7.Address designating functions are supported. You can also set all the addresses of a light at one time;
8.4 channels supported (RGBW);
9.Enhanced TTL and RS485 signal output;
10.It contains 22 programs for testing use.
Compatible chips list:
00: UCS1903,1909,1912,2903,2904,2909,2912; TM1803,1804, 1809,1812; SM16703,16709,16712; WS2811, WS2812, WS2813, WS2815, WS2818; INK1003; LX3203, 1603, 1103; GS8205, 8206; SK6812(supporting up to 1024×8=8192 pixels);
01：SM16716,16726(supporting up to 1024×8=8192 pixels);
02：P9813(supporting up to 1024×8=8192 pixels);
03：LPD6803(supporting up to 1024×8=8192 pixels);
04：LX1003,1203(supporting up to 1024×8=8192 pixels);
05：WS2801(supporting up to 1024×8=8192 pixels);
06：LPD1886(supporting up to 1024×8=8192 pixels);
07：TM1913(supporting up to 1024×8=8192 pixels);
08：TM1914(supporting up to 1024×8=8192 pixels);
09：P9883, P9823(supporting up to 1024×8=8192 pixels);
10：DMX(supporting up to 512×8=4096 pixels, it’s best to have less than 320×8=2560 pixels）;
11：DMX 500(supporting up to 512×8=4096 pixels, it’s best to have less than 320×8=2560 pixels）;
12：DMX 250K-CZF(supporting up to 512×8=4096 pixels, it’s best to have less than 320×8=2560 pixels）;
13：DMX 250K-CZF(supporting up to 512×8=4096 pixels, it’s best to have less than 320×8=2560 pixels）;
14: UCS5603-TEST
15: UCS5603A
16: UCS5603B
17: TM1814
Notes: Please select K-1000-W for a single channel, K-1000-RGB for 3 channels, or K-1000-RGBW for 4 channels in the software LedEdit-K.
Wiring Instructions
| Buttons | Functions | |
| CHIP | Switch between chip types | Pressing CHIP and then MODE button will take you set the address for the light;
61 for UCS512-A/B coding, 62 for WS2821 coding, 63 |
| MODE | Switch between programs | for SM512 coding, and 64 for UCS512-C coding |
| SPEED+ | Speed up | All the programs will be played repeatedly by pressing SPEED+ and SPEED- at the same time
|
| SPEED- | Speed down |
| DC 5-24V | 5v-24V DC positive input | |||||
| GND | Negative input | |||||
| POWER | Power indicator | |||||
| Status | Status indicator | |||||
| SD card | SD card slot | |||||
| GND | Output negative | |||||
| CLK | Clock wire（Coding wire for DMX lights） | |||||
| DAT | Data wire | |||||
| B | Signal – | |||||
| A | Signal + | |||||
| IN A | Interconnection for OUT A
Of the previous one |
|||||
| IN B | Interconnection for OUT B
Of the previous one |
|||||
| OUT A | Interconnection for IN A
Of the next one |
|||||
| OUT B | Interconnection for IN B
Of the next one |
|||||
| Speed Level | Frame Rate/Sec | Speed Level | Frame Rate/Sec |
| 1 | 4 frames | 9 | 14 frames |
| 2 | 5 frames | 10 | 16 frames |
| 3 | 6 frames | 11 | 18 frames |
| 4 | 7 frames | 12 | 20 frames |
| 5 | 8 frames | 13 | 23 frames |
| 6 | 9 frames | 14 | 25 frames |
| 7 | 10 frames | 15 | 27 frames |
| 8 | 12 frames | 16 | 30 frames |
