The slim profile of the mini aluminum extrusion makes it one of our most popular housings for your 8-10mm wide indoor led strip lights. With a variety of cover and finish options this channel can be used indoors and outdoors to create custom thin profiled LED lighting fixtures. Choose from non-anodized aluminum, double anodized aluminum, and double anodized black finish. This thinner channel is perfect for under cabinets, furniture, ceiling coves or any other lighting space requiring a thin profile. Change the beam angle of the LED Strip to 60° using the focus lens for a more condensed light beam or wall wash. Outdoor Covers can achieve an IP67 rating when sealed properly using a silicon adhesive and are recommended in any outdoor or UV exposed environment.
SPECIFICATIONS | |
Model | MINI Aluminum Extrusion |
Item No. | LDT-AP1506 |

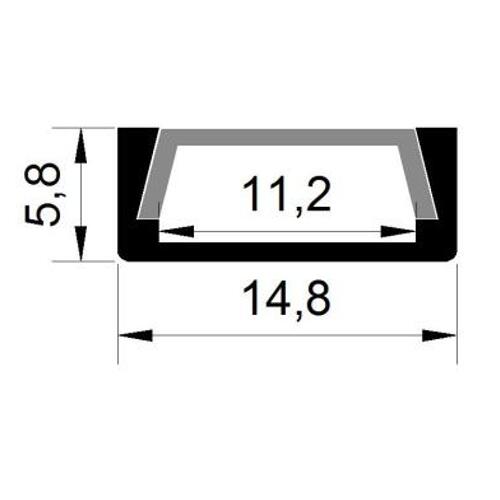

Base Width | 11mm |
Material | Aluminum |
Cover | Polycarbonate clear,frosted,opal |
Mounting | VHB Tape, Mounting Clips |
Available Lengths | 1M, 2M,3M |
Available Finishes | Non-Anodized, Anodized, Black-Anodized, White Lacquered |
