Physical Dimensions & Specifications
| NON-WATERPROOF | WATER RESISTANT | WATERPROOF | |
| Part # | LDT-FV2230C24240-IP20 | LDT-FV2230C24240-IP65 | LDT-FV2230C24240-IP 68 |
| Dimensions | 3/8″ (10mm) wide 1/16″ (2mm) thick 16.4′ (5M) long |
3/8″ (10mm) wide 1/8″ (3mm) thick 16.4′ (5M) long |
1/2″ (12.7mm) wide 3/16″ (4mm) thick 16.4′ (5M) long |
| Cut Length | 24VDC: 0.98″ (25mm) | 24VDC: 0.98″ (25mm) | 24VDC: 0.98″ (25mm) |
| IP Rating | IP20 Indoor Use Dry Location |
IP65 Splash Resistant | IP68 Submersible |
| Adhesive Backing | Yes / 3M Adhesive | Yes / 3M Adhesive | No |
| Mounting Method | Adhesive Backing | Adhesive Backing | Mounting Straps or Adhesive Caulk |
| Input Voltage | 24VDC | 24VDC | 24VDC |
| Beam Angle | 120 Degrees | 120 Degrees | 120 Degrees |
| Dimmable | Yes | Yes | Yes |
| Max Power Consumption | 5.8Watts per foot (19.2 Watts per meter) |
5.8Watts per foot (19.2 Watts per meter) |
5.8Watts per foot (19.2 Watts per meter) |

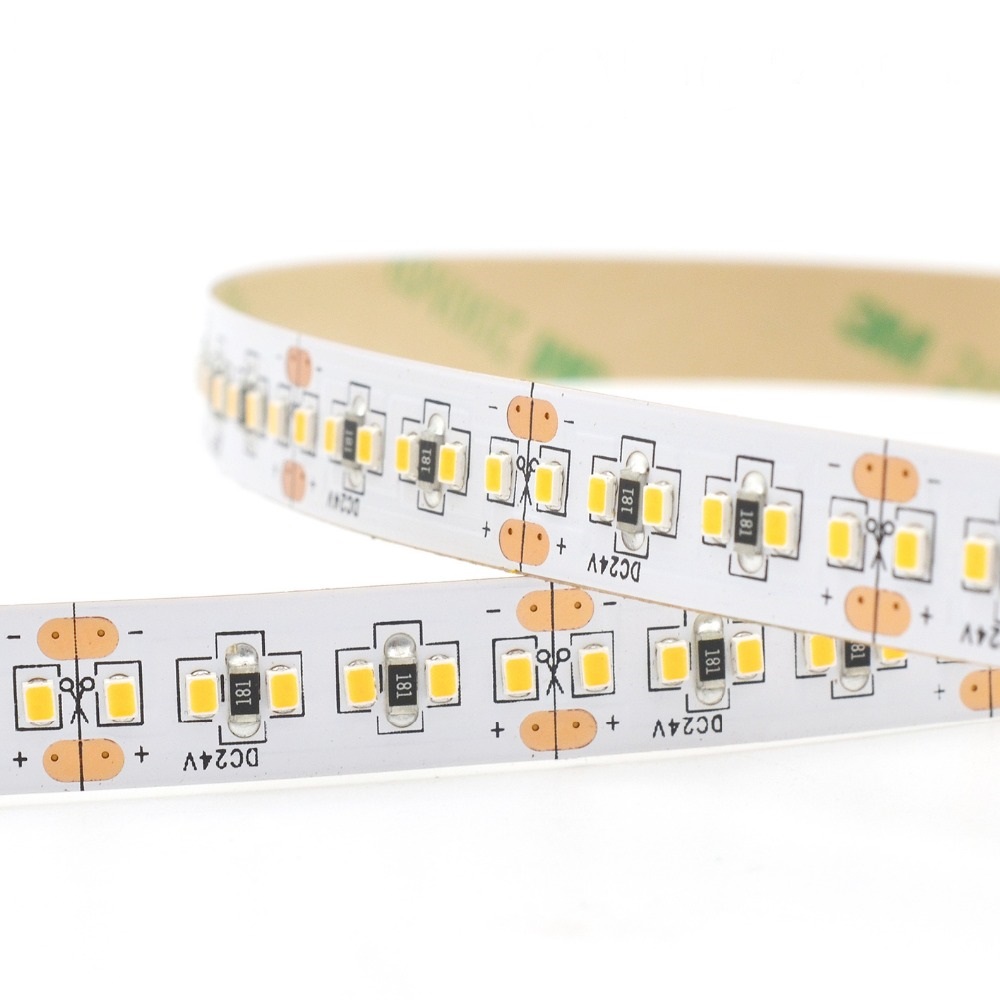

| LED Type | SMD 2216 LED Chips | SMD 2216 LED Chips | SMD 2216 LED Chips |
| LED Color | 2700K
3000K 4000K 6000K |
2700K
3000K 4000K 6000K |
2700K
3000K 4000K 6000K |
| LED Quantity | 72 LEDs per foot (1200 per reel) |
72 LEDs per foot (1200 per reel) |
72 LEDs per foot (1200 per reel) |
| Max Run | 32 feet @ 24VDC | 32 feet @ 24VDC | 32 feet @ 24VDC |
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Warranty | 3Year | 3 Year | 3 Year |
| Suitable Uses | Dry Location Only | Dry or Damp Locations | Dry, Damp or Wet Locations Safe for use in pools, ponds, fountains and water features. |
Features:
- Maintenance free
- Solid-state construction makes for high shock and vibration resistance
- SMD 2216 LEDs are super bright, high CRI and low power consumption
- Extremely long life: up to 50,000 hours with very low time-luminosity decay
- No RF interference
- Custom flexible PCB board color are available in white, black or yellow (special order)
Applications:
- Architectural lighting for canopies, corridors, archways, windows
- Downlighting or uplighting for wall wash applications
- Backlighting or edge lighting for signage
- Edge-lighting for glass
- Under-cabinet, toe-kick, in-cove moldings
- DIY projects
- Safety stair tread and step marking
- Decorative lighting for holidays, tradeshows, exhibitions
