Physical Dimensions & Specifications
| NON-WATERPROOF | WATER RESISTANT | WATERPROOF | |
| Part # | LDT-FV22J30C24240CCT-IP20 | LDT-FV22J30C24240CCT-IP65 | LDT-FV22J30C24240CCT-IP 68 |
| Dimensions | 3/8″ (10mm) wide 1/16″ (2mm) thick 16.4′ (5M) long |
3/8″ (10mm) wide 1/8″ (3mm) thick 16.4′ (5M) long |
1/2″ (12.7mm) wide 3/16″ (4mm) thick 16.4′ (5M) long |
| Cut Length | 24VDC: 1.96″ (50mm) | 24VDC: 1.96″ (50mm) | 24VDC: 1.96″ (50mm) |
| IP Rating | IP20 Indoor Use Dry Location |
IP65 Splash Resistant | IP68 Submersible |
| Adhesive Backing | Yes / 3M Adhesive | Yes / 3M Adhesive | No |
| Mounting Method | Adhesive Backing | Adhesive Backing | Mounting Straps or Adhesive Caulk |
| Input Voltage | 24VDC | 24VDC | 24VDC |
| Beam Angle | 120 Degrees | 120 Degrees | 120 Degrees |
| Dimmable | Yes | Yes | Yes |
| Max Power Consumption | 5.82Watts per foot (19.2Watts per meter) |
5.82Watts per foot (19.2Watts per meter) |
5.82Watts per foot (19.2Watts per meter) |
| LED Type | SMD 2216 LED Chips | SMD 2216 LED Chips | SMD 2216 LED Chips |
| LED Color | 2700-6500k | 2700-6500k | 2700-6500k |
| LED Quantity | 72 LEDs per foot (1200 per reel) |
72 LEDs per foot (1200 per reel) |
72 LEDs per foot (1200 per reel) |
| Max Run | 16.4 feet @ 24VDC | 16.4 feet @ 24VDC | 16.4 feet @ 24VDC |
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Warranty | 3Year | 3 Year | 3 Year |
| Suitable Uses | Dry Location Only | Dry or Damp Locations | Dry, Damp or Wet Locations Safe for use in pools, ponds, fountains and water features. |

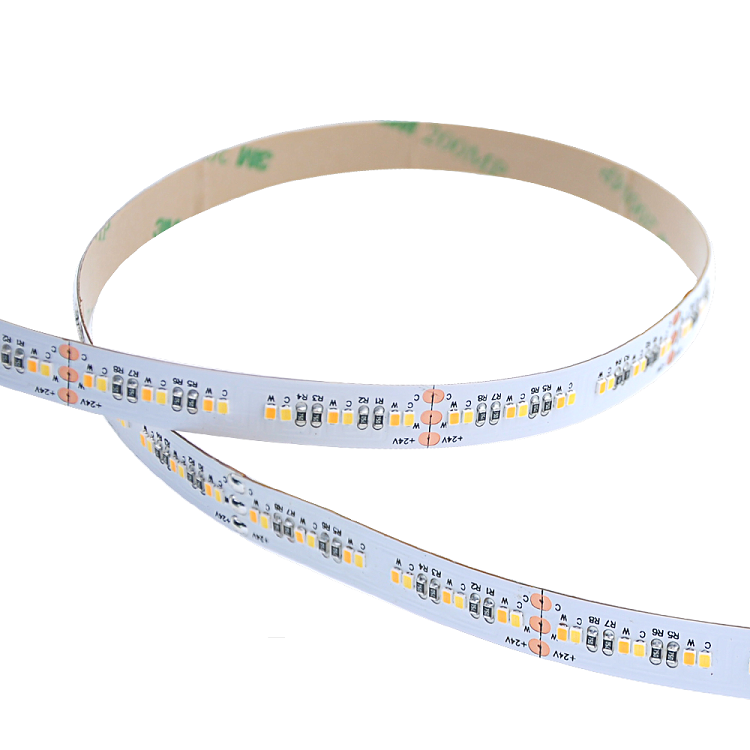

Dynamic White LED Strip lights features a new and innovative way to create any color tone from a vivid and comfortable warm white to a crystal clear pure white. This state of the art Dynamic White LED Strip is the perfect solution where color temperature must be adjusted on a continuous basis. This is done by using 2 different LED Chips alongside the Led Light Strip.
For example the 96W Dynamic White LED strip Light has 1200 LEDs. 600 units are warm white and 600 units are Pure White. The LED Chips are placed in an interlacing fashion; Warm White-Cold White-Warm White and so forth. By using a 2 circuit Flexible Printed Circuit, individual control can be achieved for both types of Chips. By increasing and decreasing the light output of each color, we are able to create any type of white or Dynamic White. This is very useful when lighting up different scenarios that require the light to have a different consistency for each use.
Examples:
In a museum display case or in the jewelry business, depending on what types of items are being displayed, some items will show their natural colors better in Daylight white rather that warm white. Therefore the Light color tone can be adjusted precisely every time a new show is presented. It can be easily cut with plain scissors and it includes 3M Premium grade double sided tape for easy installation on any surface.
Dynamic White LED Strips Lights are perfect for:
Retail Display cases
Jewelry Displays
Hospitality lighting
Museum and event display lighting
Cove Lighting
