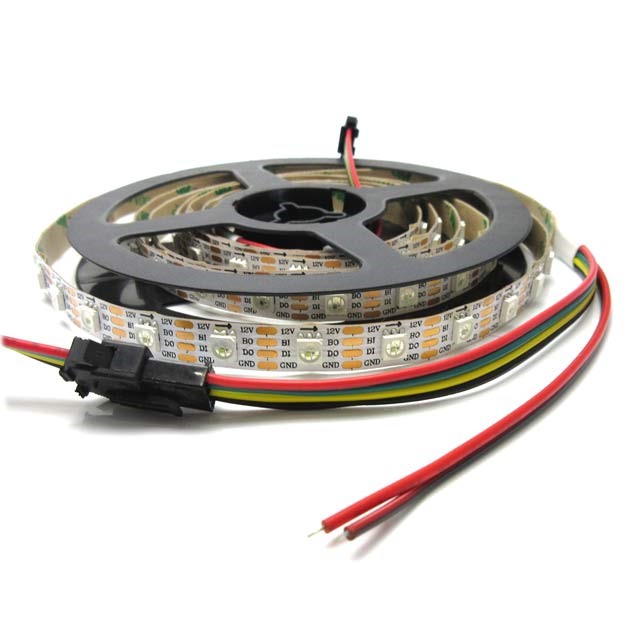

As we know, only 5v strips are fully addressable (one led, one pixel), but now the fact has already changed. 12V strips are also one LED one pixel, that is, WS2815 color chasing RGB strips. It’s built-in version for GS8208. The IC and LED chips are integrated into one SMD5050 diode package.
Features
- WS2815 can work direct on DC12V (one LED, one pixel like DC5V SK6812);
- Dual signal wires for more reliability (a single LED failure has no effect on other LEDs working on the same unit and the whole light can stay illuminated);
- Compatible with the majority of existing color chasing LED controllers;
- DC12V working voltage reduces the operating current, and therefore extends the connection length;
Specifications:
| Part NO | LDT-WS2815 |
| Lighting Source | SMD5050 RGB LED |
| Beam Angel | 120 degree |
| Operate Voltage | DC12V |
| LED Quantity | 30/60 pcs LED per meter |
| IC Type | WS2815 |
| PCB Color | Black/White |
| PCB Width | 10mm |
| Waterproof Grade | IP20/IP65(Silicon tube) |
| Working temperature | -20℃-60℃ |
| Storage temperature | -30℃-80℃ |
Applications:
- Architectural and landscape lighting
- Cove lighting
- Low resolution LED displays
- ATV/UTV LED whip lighting
- Bar/stage lighting
- Car lighting like halo rings and wheel lights
